addition polymerisation

Chemistry only

You should know what addition polymerisation is and how addition polymers are formed before you read this page.

Polymerisation reactions can be carried out at different temperatures and pressures and also using different catalysts. This results in polymers with different properties e.g. poly(propene) is a very useful polymer; it is used in the manufacture of ropes, car bumpers and plastic crates. However when chemists first produced poly(propene) there was a problem with the polymer they produced. The -CH3 groups attached to the carbon backbone of the polymer; shown in the image below were arranged randomly around the backbone of the polymer molecule. Some of the -CH3 were above the carbon backbone and some below. Unfortunately this random arrangement of these -CH3 groups resulted in a soft, flexible polymer which melted at a fairly low temperature and it was of little use.

polypropene structure

However by using a specially developed catalyst the Italian chemist Giulio Natta was able to produce a polymer where all the -CH3 groups were on the one side of the carbon backbone. This produce a much stronger, stiffer polymer with a melting point high enough (1600C) to make plastic plates and containers which would not melt in the dishwasher. This new stronger and stiffer polymer was also suitable for use in making plastic crates and ropes.

polypropene structure - ordered arrangement.

Example 2- Polythene or poly(ethene)

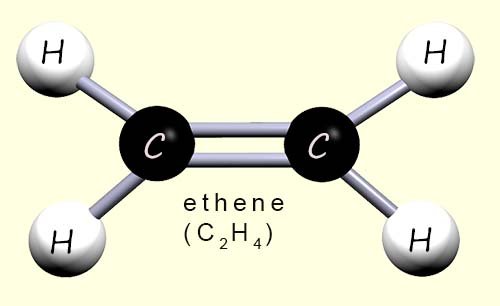

There are two types of polythene in common use; high density polythene (HDPE) and low density polythene (LDPE). Both of these types of poly(ethene) or polythene are made from the same monomer; ethene. However the differences in the chemical and physical properties of these two types of polythene are down to the way in which they are made.

High density poly(ethene) (HDPE)

HDPE is used to make all the items in the collage below:

Montage showing the items made from HDPE.

The long polythene chains which make up HDPE are very linear and regular in shape with only a few side chains or branches present; this allows the long polymer chains to pack closely together which results in a dense polymer. The close packing of the polymer chains also allows for more intermolecular bonding between adjacent polymer chains which results in an increase in the strength of the polymer. HDPE has many uses; this is mainly due to its many useful and valuable properties which include:

However HDPE has numerous drawbacks: it is not biodegradable, it is flammable and it is made from a monomer obtained from crude oil; which is of course a finite resource.

Low density polythene (LDPE)

Due to the way in which LDPE is made the polymer chains have many side branches present; this prevents the polymer chains in the LDPE from packing together closely which results in a low density polymer. Since the polymer chains cannot pack together well there is a reduction in the strength of the intermolecular bonding present which reduces the strength of the polymer.

The collage below shows a few items which are made from LDPE.

A montage to show the uses of LDPE.

Low density polythene is used to make a wide variety of items including:

The difference between the two types of polythene are down to the way they are made. The table below summaries the differences in the way these two variants of the same polymer are made.

Manufacturing conditions LDPE HDPE
pressure (atmospheres) 1000-3000 10-80
temperature (/0C) 150-300 70-150
catalyst Uses an initiator such as oxygen or a peroxide to start the reaction. Ziegler-Natta catalyst - a catalyst containing aluminium and titanium.

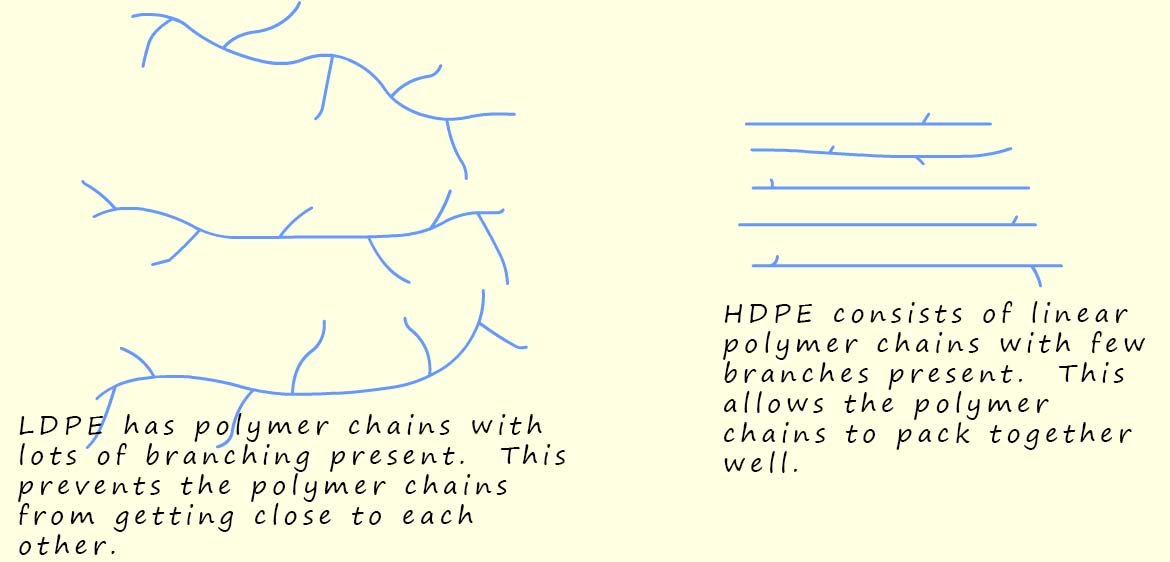

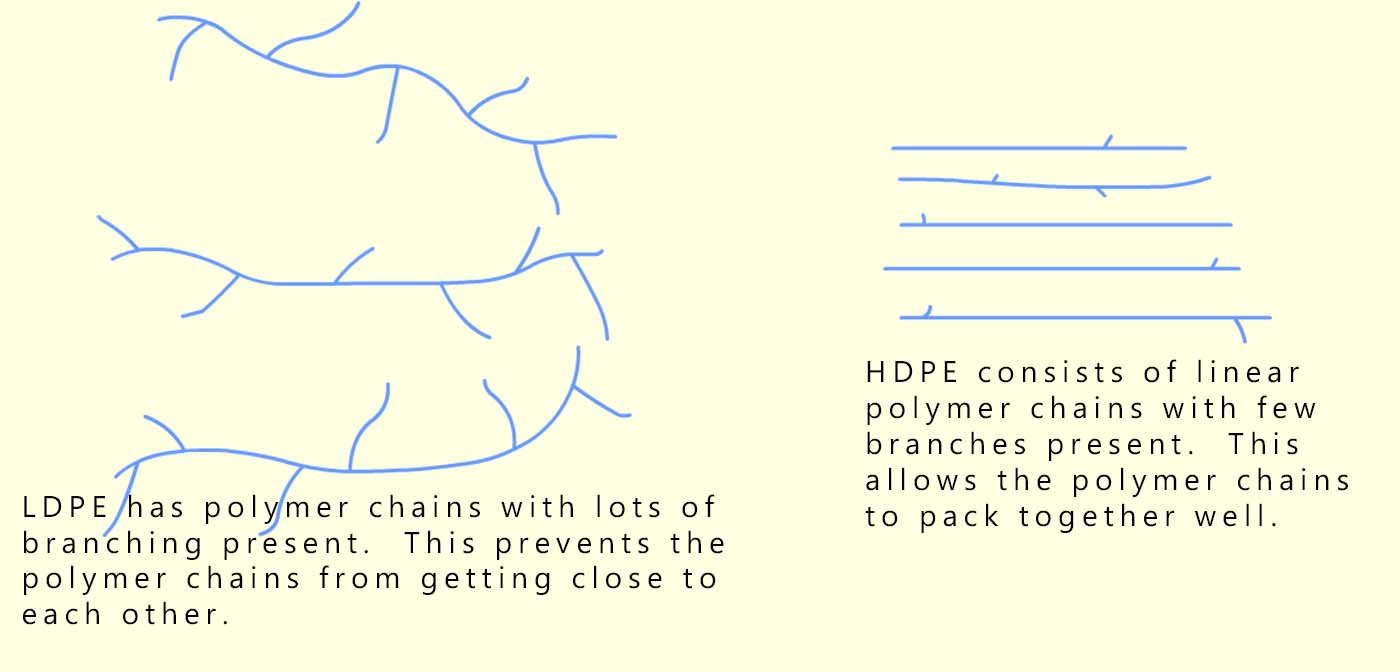

How the polymer chains are arranged in LDPE and HDPE.

HDPE manufacturers use medium temperature and low pressure and a catalyst whereas LDPE is manufactured using a much higher temperature and pressure and an oxygen or peroxide initiator to start the reaction. These different conditions produce polymers with different structures and properties. HDPE has straight polymer chains which pack together tightly resulting in a polymer with lots of strong intermolecular bonding present. This produces a polymer with a high melting point, which is stiffer, stronger and denser than LDPE.

LDPE on the other hand has polymer chains which vary in length from between 4000 to 40 0000 carbon atoms long with lots of branches present. The presence of these branches means that the polymer chains cannot pack together very well and so it has a low density. It also has a lower melting point, is softer, more transparent, more flexible than HDPE.

Thermosoftening and thermosetting polymers

How the long polymer chains are arranged in a polymer, they look like a plate of noodles. If you could see the polymer chains in a typical plastic or polymer what do you think they might look like? Well a good picture to have in your mind is a plate of noodles or spaghetti! Here the long strands are all tangled and mixed up together. Well in a typical polymer this is probably how the long polymer molecules or chains would look. If you pull on any of the strands of spaghetti it is possible to tease them out and pull them off the plate. This is because each strand is separate and not actually chemically joined to any other strands.

Most polymers or plastics when you heat them to fairly low temperatures will melt easily. This is easily demonstrated if you take say a plastic bowl or a plastic bottle and place it in an oven at around 150-2000C. The plastic will soften and melt. This softened or molten polymer could be processed again in a factory to make a new plastic object- it could be recycled. Plastics or polymers which melt when they are heated are called thermosoftening polymers or plastics. Most plastic are thermosoftening.

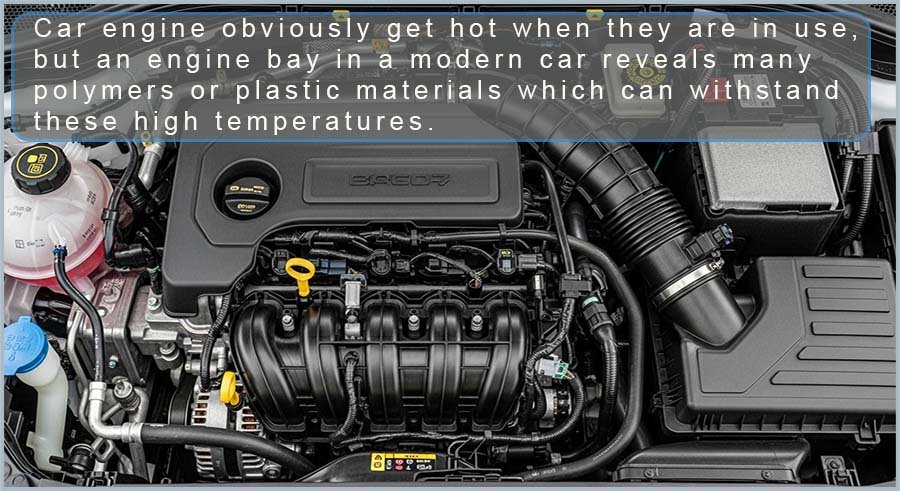

However the image below shows some plastic objects which are used in high temperature environments yet they do not melt. Car engines contain many plastic components which are exposed to very high temperatures; even at home for example pots have plastic handles, plastic kitchen utensils, electrical plugs and even the plastic trim on many ovens seem to be able to resist high temperatures without melting. These polymers are called thermosetting polymers. They will not melt on heating, however if they are heated to very high temperatures they will start to char and eventually they will decompose and they may catch fire and burn.

Montage showing the uses of thermosetting polymers.

The reason for these differences in the properties of these two types of polymers is in the way the polymers or plastics are made and the differences in their structures.

Thermosoftening polymers contains of long polymer chains which are all tangled and mixed together much like the noodles above; but there are only weak intermolecular forces between the polymer chains. So when these polymers are heated the polymer chains begin to move and vibrate more and more; this increase in movement of the chains will break the weak intermolecular bonds and the polymer chains become free to move- the polymer will then start to melt.
Thermosetting polymers- have strong covalent bonds or cross-links holding the polymer chains in place. These covalent bonds are much stronger than the weak intermolecular bonds which hold the chains in place in a thermosoftening polymer. When a thermosetting polymer is heated the chains are prevented from moving by these cross-links, so the polymer cannot melt.

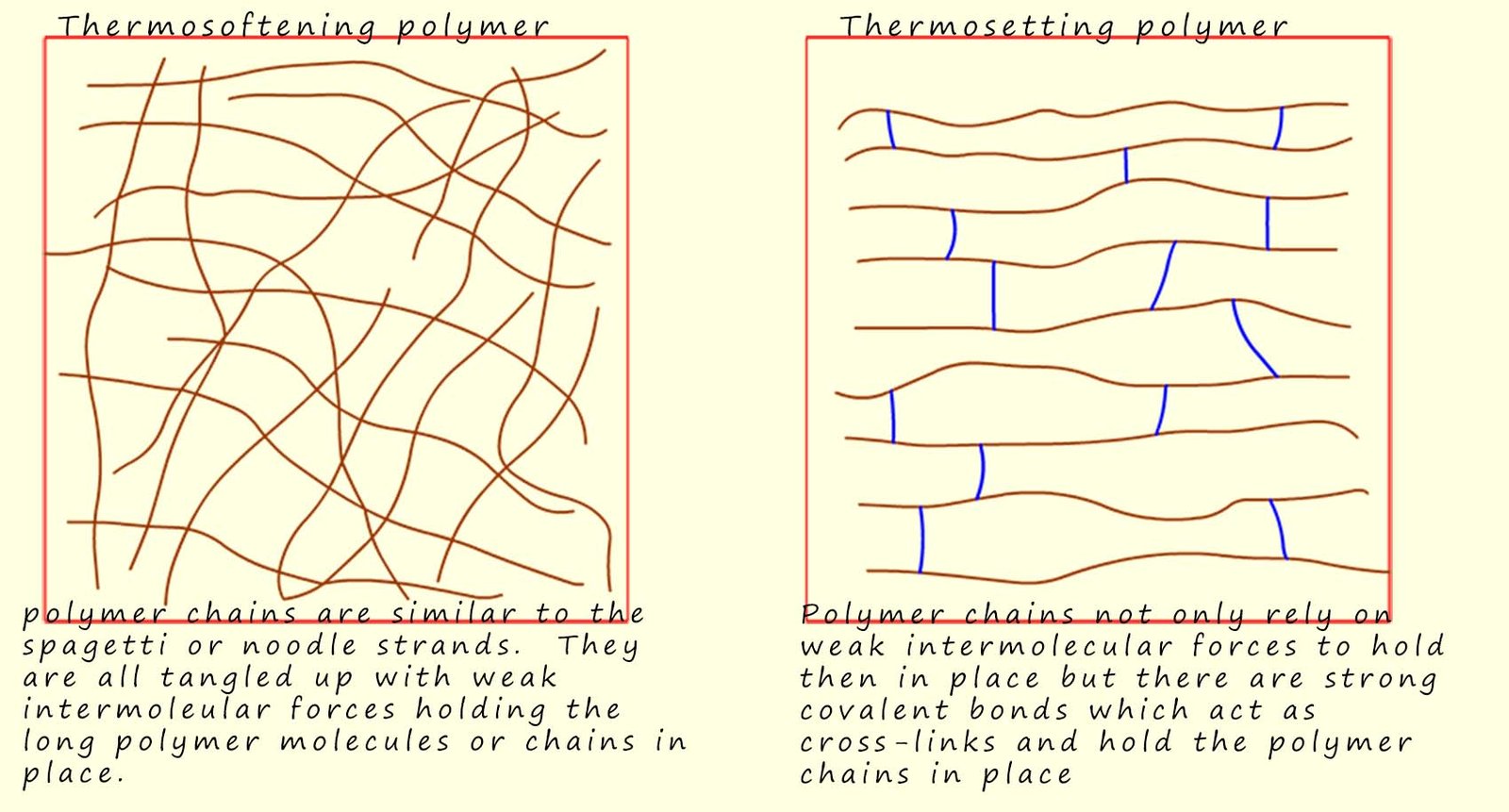

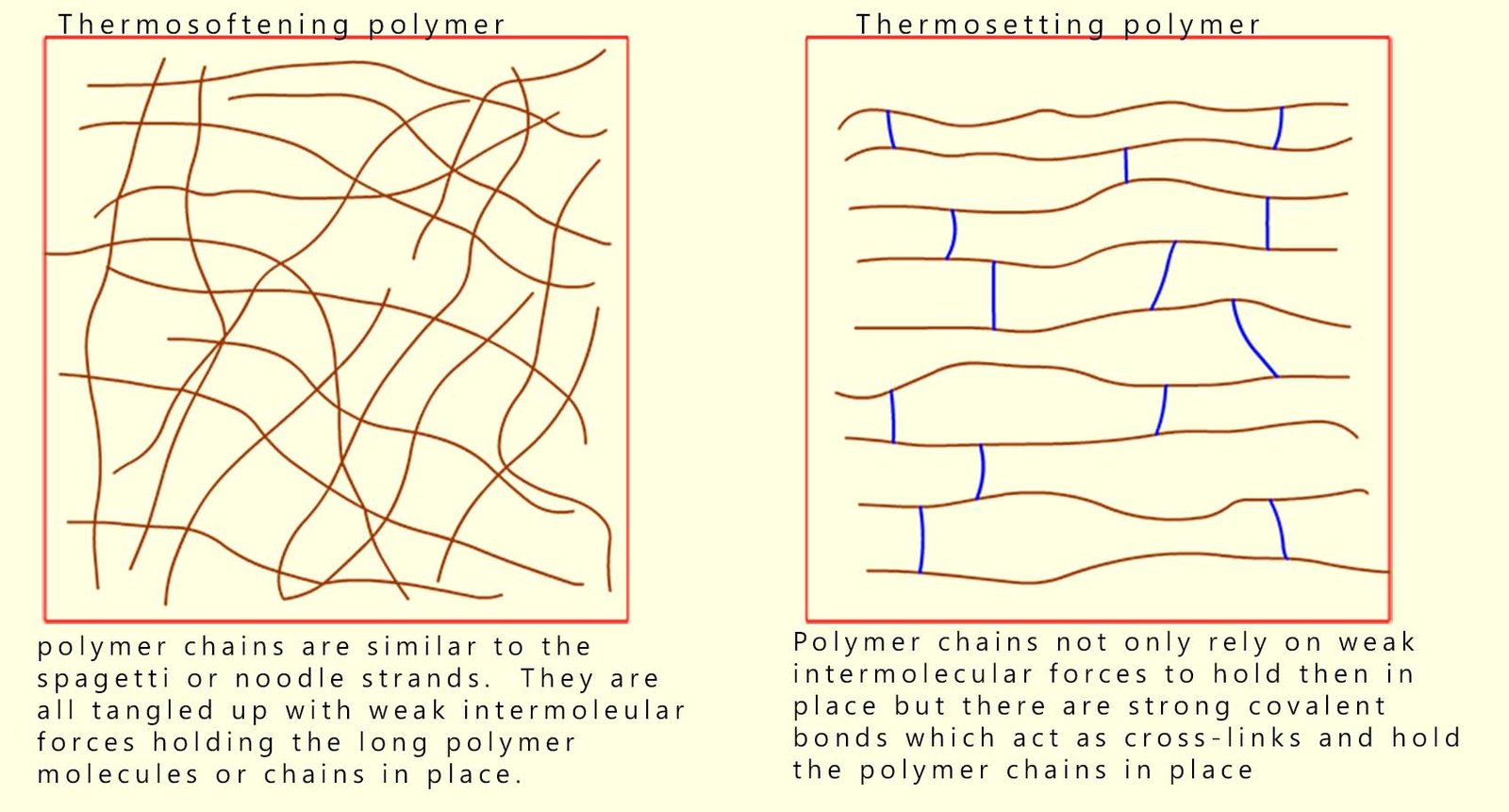

The image below shows how the polymer chains are arranged in thermosetting and thermosoftening polymer.

Structure of thermosetting and therosoftening polymers and explanation of how they differ from each other.

Key Points

Practice questions

Check your understanding - Questions on addition polymers and their properties.
